MLD acoustic ceiling systems

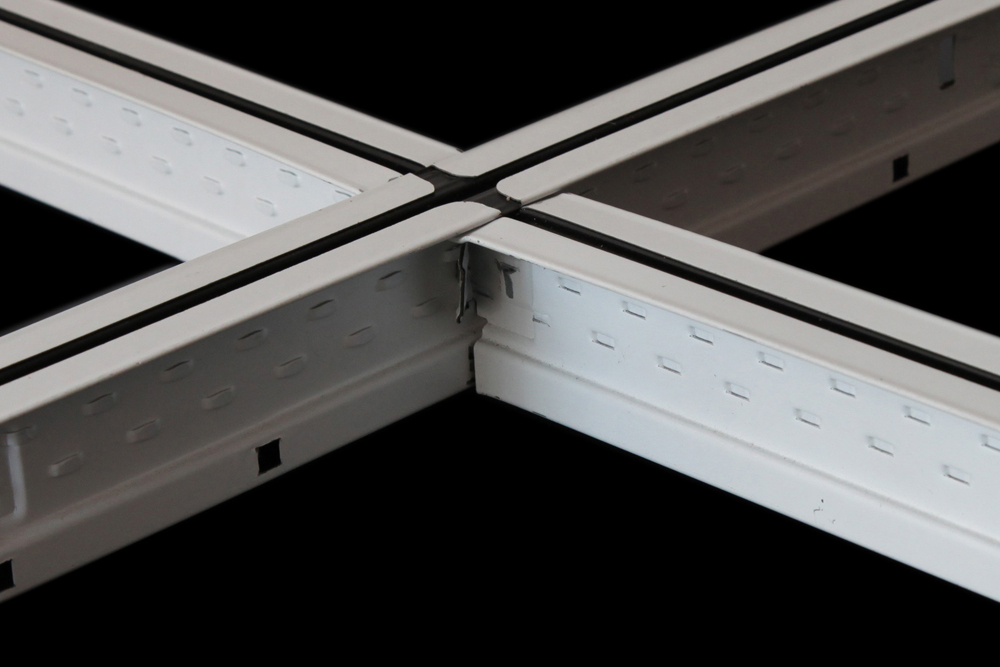

24W38H FUT T-grid

24mm width 38H FUT(Black line) T-grid with thickness from 0.3-0.4mm and different color for choice
INQUIRY
DETAIL


FEATURES

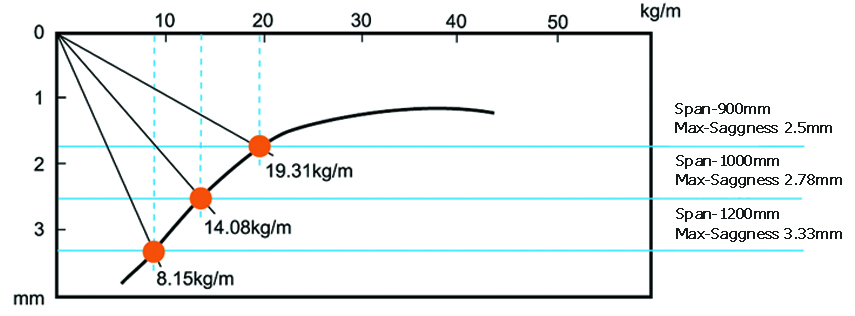

LOADING CAPACITY

Type



24 mm Width 38mm Height FUT (Black line) T-grid

Color

White (can be customized)

Raw Materials

Bake finish steel

Stitch Line

Can be customized

Standard

China National Standard GB/T11981-2008









INSTALLATION QTY CHART

Module

Installation Method

Approximate Quantity PCS required per 100m2                                                    (waste allowance not included)

Tile Size

Tile Qty

Main T Centres

Hanger Centres

Main T

1.2 Cross T

0.6 Cross T

Hanger

Wall angle

1200x600

139pcs

1200mm

1200mm

23

139



70

14

600mm

1200mm

48



139

140

600x600

278pcs

1200mm

1200mm

23

139

139

70

600mm

1200mm

48



278

140

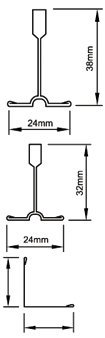

DIMENSION

Item

code no.

Dimensionmm)

Thickness

Qty./box

Weight/box

length

width

height

mm

pcs

kgs



Main T

A338

3600/3660

24

38

0.35

25

21-22.5

0.3

0.27

Cross T

1200/1220

24

38/32/28

0.35

50

13-14

0.3

0.27

Cross T

600/610

24

38/32/28

0.35

75

9.5-10.5

0.3

0.27

Wall angle

L

3000/3050

24

24

0.5

40

20-21

22

22

0.45

W

15x15x10

0.4
