MLD acoustic ceiling systems

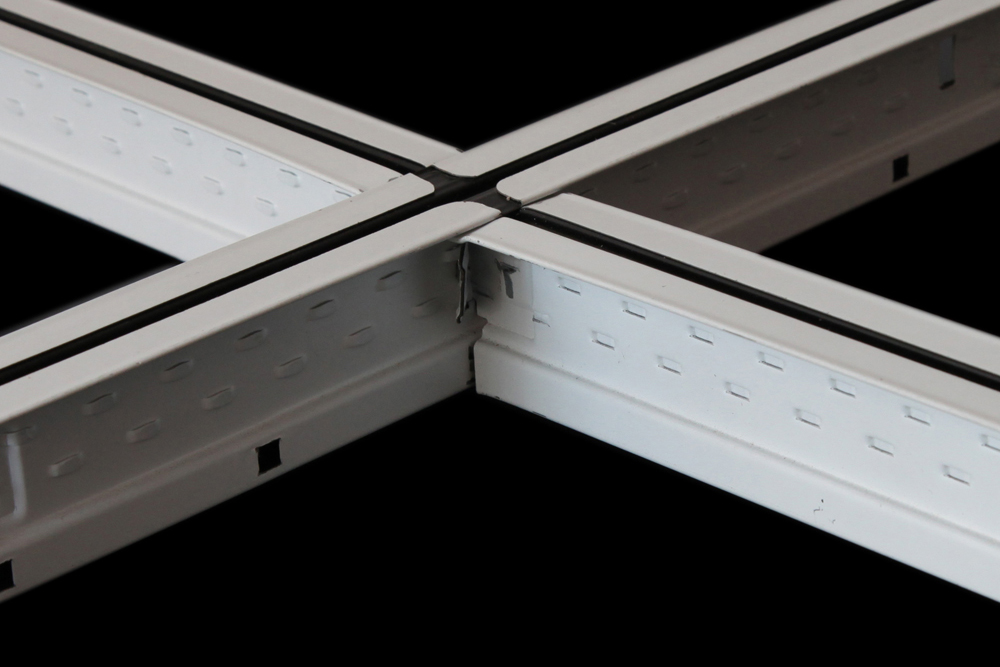

24W32H FUT T-grid

24mm width 32H FUT(Black line) T-grid with thickness from 0.3-0.4mm and different color for choice
INQUIRY
DETAIL


FEATURES

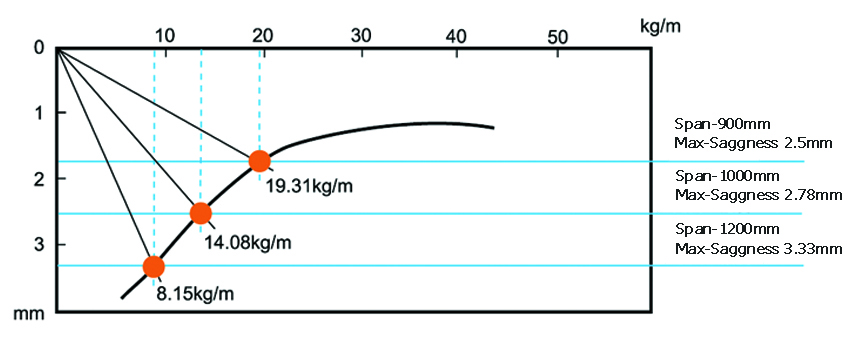

LOADING CAPACITY

Type





24mm Width 32mm Height FUT(black line) T-grid



Color



White (can be customized)



Raw Materials



Bake finish steel



Stitch Line



Can be customized



Standard



China National Standard GB/T11981-2008











INSTALLATION QTY CHART

Module

Installation Method

Approximate Quantity PCS required per 100m2                                                    (waste allowance not included)

Tile Size

Tile Qty

Main T Centres

Hanger Centres

Main T

1.2 Cross T

0.6 Cross T

Hanger

Wall angle

1200x600

139pcs

1200mm

1200mm

23

139



70

14

600mm

1200mm

48



139

140

600x600

278pcs

1200mm

1200mm

23

139

139

70

600mm

1200mm

48



278

140

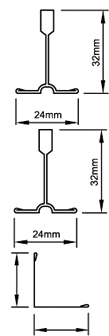

DIMENSION

Item

code no.

Dimensionmm)

Thickness

Qty./box

Weight/box

length

width

height

mm

pcs

kgs



Main T

A332

3600/3660

24

32

0.35

25

24-26

0.3

0.27

Cross T

1200/1220

24

32/28

0.35

50

15-16

0.3

0.27

Cross T

600/610

24

32/28

0.35

75

11-12

0.3

0.27

Wall angle

L

3000/3050

24

24

0.5

40

20-21

22

22

0.45

W

15x15x10

0.4
