MLD acoustic ceiling systems

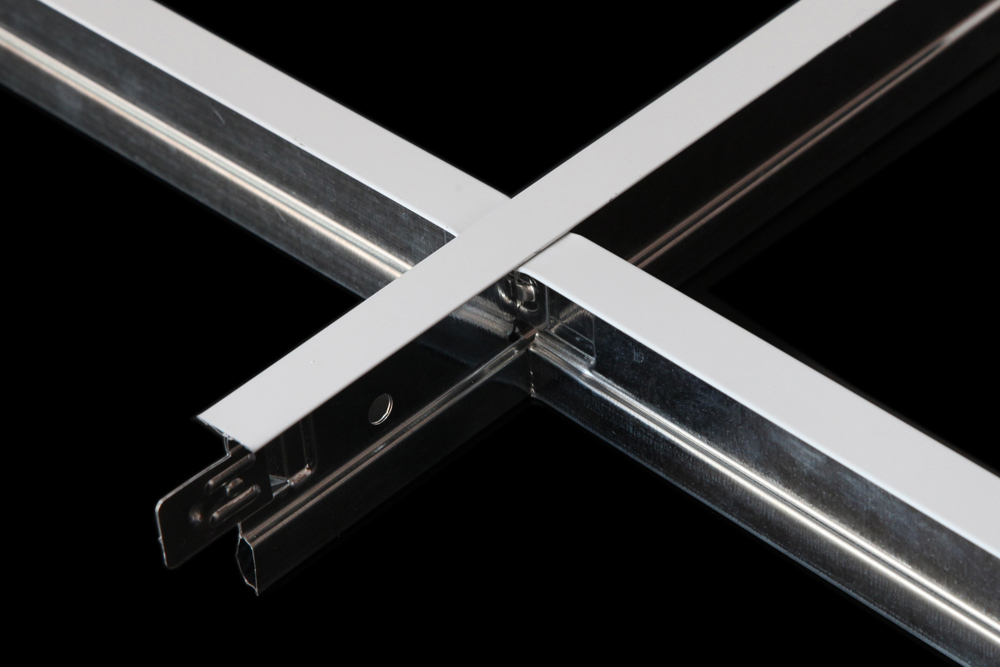

15mmx38H Flat T-grid

15mm width 38H Flat T-grid with thickness from 0.27-0.4mm and different color for choice
INQUIRY
DETAIL


FEATURES

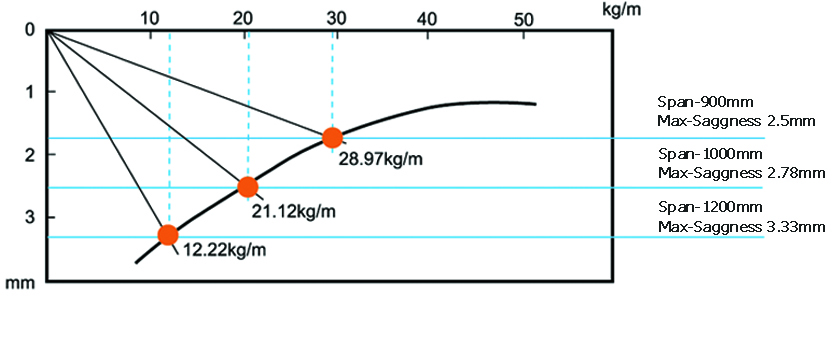

LOADING CAPACITY

Type





15mm Width 38mm Height Flat T-grid



Color



White (can be customized)



Raw Materials



Galvanized  steel



Stitch Line



Can be customized



Standard



China National Standard GB/T11981-2008











INSTALLATION QTY CHART

Module

Installation Method

Approximate Quantity PCS required per 100m2                                                    (waste allowance not included)

Tile Size

Tile Qty

Main T Centres

Hanger Centres

Main T

1.2 Cross T

0.6 Cross T

Hanger

Wall angle

1200x600

139pcs

1200mm

1200mm

23

139



70

14

600mm

1200mm

48



139

140

600x600

278pcs

1200mm

1200mm

23

139

139

70

600mm

1200mm

48



278

140

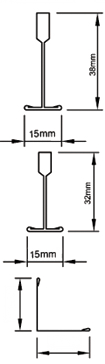

DIMENSION

Item

code no.

Dimensionmm)

Thickness

Qty./box

Weight/box

length

width

height

mm

pcs

kgs



Main T

A238

3600/3660

15

38

0.35

25

21-22.5

0.3

0.27

Cross T

1200/1220

15

38

0.35

50

13-14

0.3

0.27

Cross T

600/610

15

38

0.35

75

9.5-10.5

0.3

0.27

Wall angle

L

3000/3050

24

24

0.5

40

20-21

22

22

0.45

W

15x15x10

0.4
