MLD acoustic ceiling systems

Cuteworm

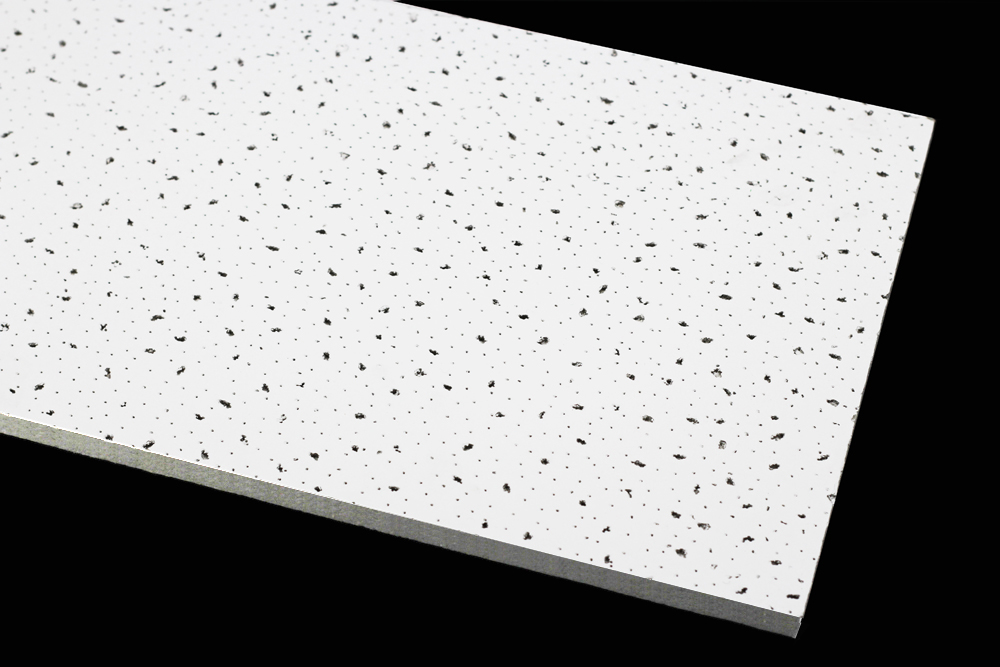

mineral fiber ceiling tile is economic tile with good performance ,saving cost .
INQUIRY
DETAIL
FEATURES
Fine texture with different shapes of perforation on surface
Non-direction pattern makes installation easy and saves cost
High light reflection
Good sound absportion ability
100% Asbestos free
PHYSICAL DATA
Raw materials                       Surface finish
Wet-formed slag fiber    Factory-applied vinyl paint
Weight  Insulation Value
3.40-4.50kg/m2  16mm Average R Factor-1.5 (Imperial)
Fire resistance 0.70-0.92lbs/SF  Factor-0.26(Metric)
Class A:Flame spread 25 or under ASTM E84 ASTM E1264
B grade:China standard Type 3Form 2,Pattern CDE
Class 0:Brintain standard BS476 part6&7
PERFORMANCE STANDARD
Humidity Resistance Up to RH95
Noise Reduction Coefficients Up to NRC 0.5
CAC 36
Light reflection 0.87
DIMENSIONS*
System Nominal size Actual size
Metric size 600mmx600mm 595mmx595mm
600mmx1200mm 595mmx1195mm
Imperial size 2'x2' 605mmx605mm
2'x4' 605mmx1215mm
Thickness 12/14/15/16/18mm
*Plank sizes and customized sizes are avilable ,please contact us for more details.
EDGE TYPES COLORS*



*White is standard ,please consult Alland sales engineer for more choice.
